Sawafi Motor

Sawafi 11 3/4" 7/8 Lobes 4.8 Stages Motor

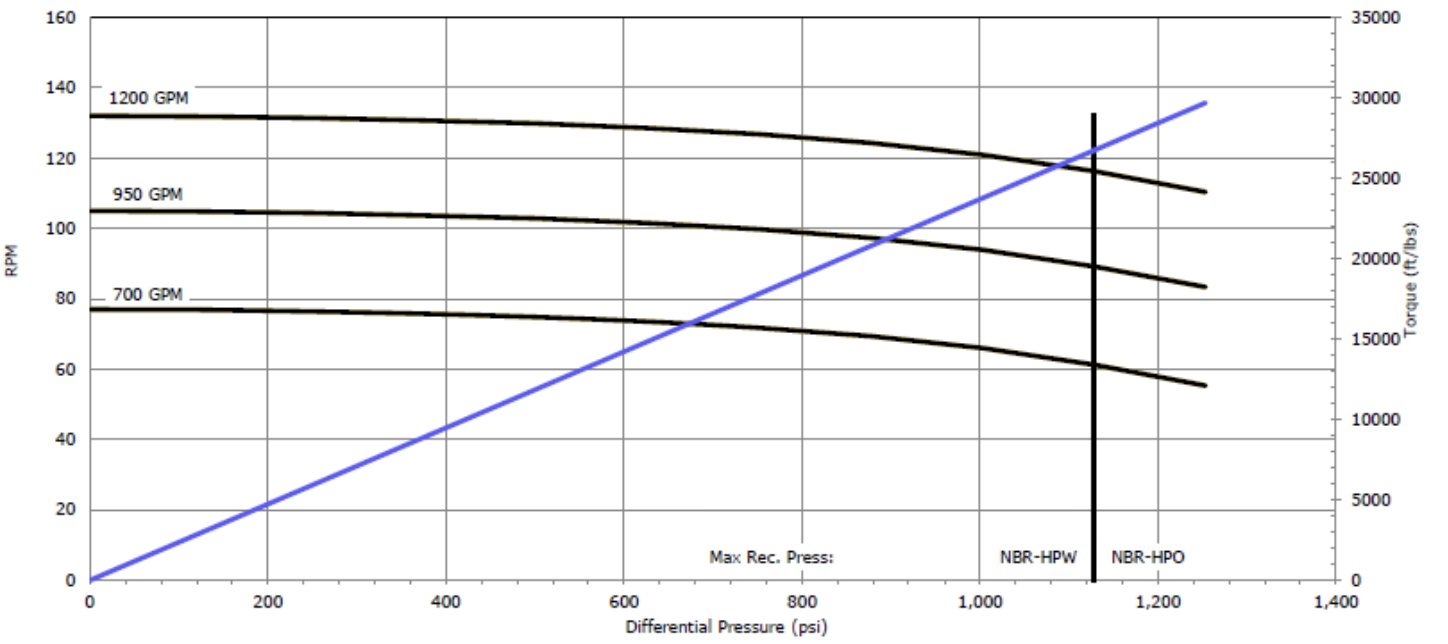

Torque Slope

23.65 ft-lb/psi

REV / Gal

0.110 rev/gal

RPM

80 - 130 rpm

Flow range

700 - 1200 gpm

Max Differential

1130 psi

Max Torque

26730 lb-ft

Stall Differential

1400 psi

Stall Torque

42090 lb-ft

Dynamic BL

185000 lbs

Static BL

1376000 lbs

Weight

7100 pounds

Torque Slope

23.65 ft-lb/psi

REV / Gal

0.110 rev/gal

0.029 rev/lpm

RPM

80 - 130 rpm

Flow range

700 - 1200 gpm

2650 - 4542 lpm

Max Differential

1130 psi

7791 kPa

Max Torque

26730 ft. lbs

36241 N-m

Stall Differential

1400 psi

9653 kPa

Stall Torque

42090 lb-ft

57066 N-m

Dynamic BL

185000 lbs

822 kN

Static BL

1376000 lbs

6120 kN

Weight

7100 pounds

3221 kilos

Bit to Stab

30.50 in

Bit to Bend

91.50 in

Slick OD

11.75 in

Wear Pad OD

ABH 13.25 Inc - FBH 12.75 Inc in

Overall Length

426.00 in

Top Connection

As Requested

Bottom Connection

7-5/8 Regular" Reg

Bit to Stab

30.50 in

Bit to Bend

91.50 in

Overall Length

426.00 in

Slick OD

11.75 in

Wear Pad OD

ABH 13.25 Inc - FBH 12.75 Inc

Top Connection

As Requested

Bottom Connection

7-5/8 Regular

Top Connection

As Requested

Bottom Connection

7-5/8 Regular

Predicted Build Rates (Degrees per 100 ft/30 m)
Bend Slick Single Stabilizer Double Stabilizer
16 17 22 28 16 17 22 28 16 17 22 28
0.39 - - - - 2.80 3.20 4.90 6.90 1.30 1.30 1.30 1.30
0.78 1.80 0.70 - - 4.40 4.80 6.50 8.50 2.90 2.90 2.90 2.90
1.15 3.70 2.60 - - 5.90 6.30 8.00 10.00 4.40 4.40 4.40 4.30
1.50 5.50 4.40 0.20 - 7.40 7.70 9.40 11.40 5.80 5.80 5.80 5.80
1.83 7.20 6.10 1.90 - 8.70 9.10 10.70 12.80 7.10 7.10 7.10 7.10
2.12 8.70 7.60 3.30 - 9.90 10.20 11.90 13.90 8.30 8.30 8.30 8.30
2.38 10.00 8.90 4.70 - 11.00 11.30 13.00 15.00 9.40 9.40 9.40 9.30
2.60 11.10 10.00 5.80 - 11.90 12.20 13.90 15.90 10.30 10.30 10.20 10.20
2.77 12.00 10.90 6.60 - 12.50 12.90 14.60 16.60 11.00 11.00 10.90 10.90
2.90 12.60 11.50 7.30 0.10 13.00 13.40 15.10 17.00 11.50 11.50 11.40 11.40
2.97 13.00 11.90 7.70 0.50 13.40 13.70 15.40 17.40 11.80 11.80 11.70 11.70
3.00 13.20 12.10 7.80 0.70 13.50 13.80 15.50 17.50 11.90 11.90 11.90 11.80
*The charts above display the maximum theoretical allowable rotation for optimal hole conditions. The RPM limits above are for optimal hole conditions and normal drilling conditions and parameters. These should be reduced further when operating with high vibration, high rotary torque, poor hole quality, high WOB, stick slip, hard stall events and other abnormal conditions.
