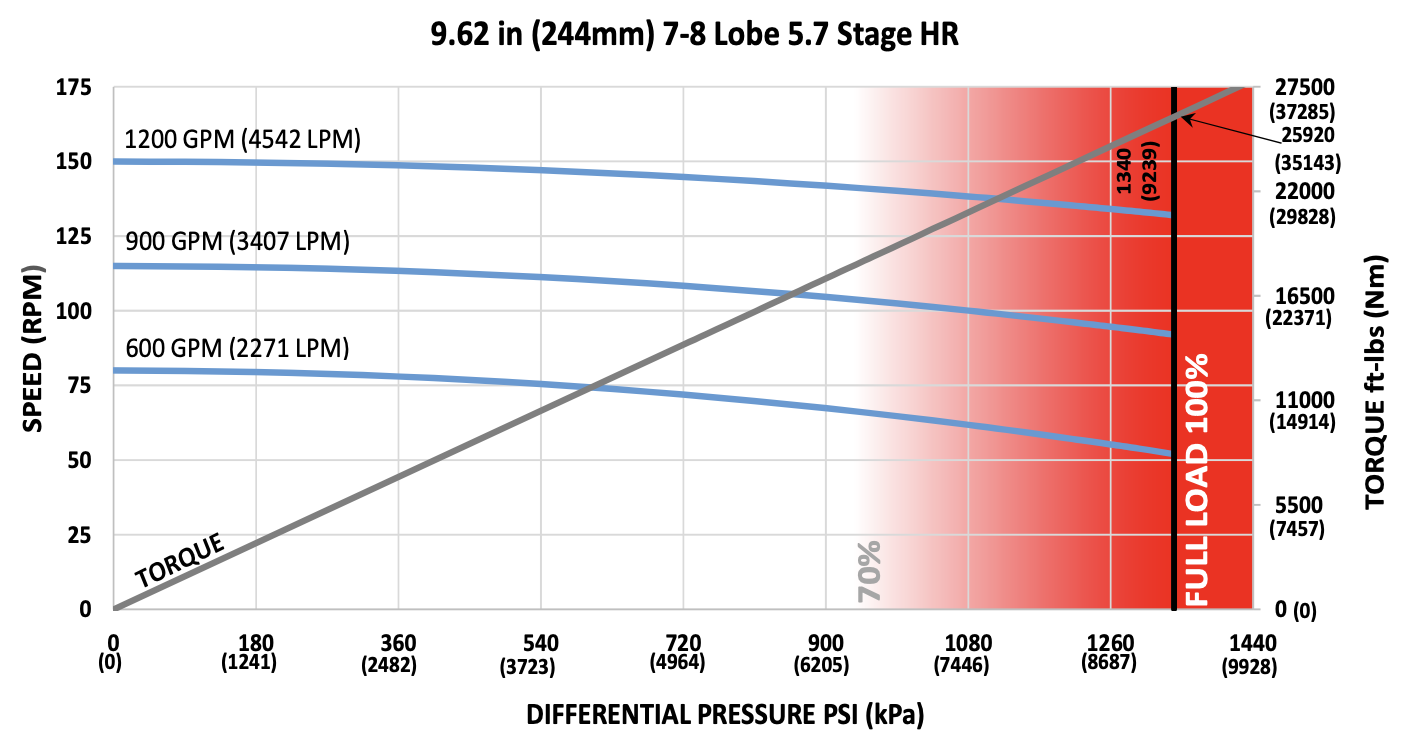

Sawafi 9 5/8" 7/8 Lobes 5.7 Stage Motor
Torque Slope
19.20 ft-lb/psi
REV / Gal
0.130 rev/gal
0.034 rev/lpm
RPM
52 - 150 rpm
Flow range
600 - 1200 gpm
2271 - 4542 lpm
Max Differential
1340 psi
9239 kPa
Max Torque
25920 ft. lbs
35143 N-m
Stall Differential
2110 psi
14548 kPa
Stall Torque
40830 lb-ft
55358 N-m
Dynamic BL
207360 lbs
922 kN
Weight
6178 pounds
2802 kilos
Bit to Stab
20.10 in
Bit to Bend
87.40 in
Slick OD
9.62 in
Wear Pad OD
8.25 Inch in
Overall Length
398.60 in
Top Connection
6-5/8 or 7-5/8 REGULAR
Bottom Connection
6-5/8 or 7-5/8" Reg
Predicted Build Rates (Degrees per 100 ft/30 m)
| Bend | Slick | Single Stabilizer | ||||||
|---|---|---|---|---|---|---|---|---|
| 10 ⅝ | 16 | 14 | 17 ½ | 10 ⅝ | 16 | 14 | 17 ½ | |
| 0.39 | - | - | - | - | 2.50 | - | - | - |
| 0.78 | 1.40 | - | - | - | 4.50 | 6.50 | 5.40 | - |
| 1.15 | 3.70 | - | 0.60 | - | 6.40 | 8.40 | 7.30 | 9.20 |
| 1.50 | 5.90 | - | 2.80 | - | 8.20 | 10.20 | 9.10 | 11.00 |
| 1.83 | 8.00 | 1.40 | 4.90 | - | 9.90 | 11.90 | 10.80 | 12.60 |
| 2.12 | 9.90 | 3.20 | 6.80 | 0.50 | 11.40 | 13.30 | 12.30 | 14.10 |
| 2.38 | 11.50 | 4.90 | 8.40 | 2.20 | 12.70 | 14.70 | 13.60 | 15.50 |
| 2.60 | 12.90 | 6.30 | 9.80 | 3.60 | 13.80 | 15.80 | 14.70 | 16.60 |
| 2.77 | 14.00 | 7.30 | 10.90 | 4.70 | 14.70 | 16.60 | 15.60 | 17.40 |
| 2.90 | 14.80 | 8.20 | 11.70 | 5.50 | 15.30 | 17.30 | 16.30 | 18.10 |
| 2.97 | 15.20 | 8.60 | 12.10 | 5.90 | 15.70 | 17.70 | 16.60 | 18.50 |
| 3.00 | 15.40 | 8.80 | 12.30 | 6.10 | 15.80 | 17.80 | 16.80 | 18.60 |
*The charts above display the maximum theoretical allowable rotation for optimal hole conditions. The RPM limits above are for optimal hole
conditions and normal drilling conditions and parameters. These should be reduced further when operating with high vibration, high rotary
torque, poor hole quality, high WOB, stick slip, hard stall events and other abnormal conditions.
