Sawafi 8" 7/8 Lobes 4.0 Stage Motor

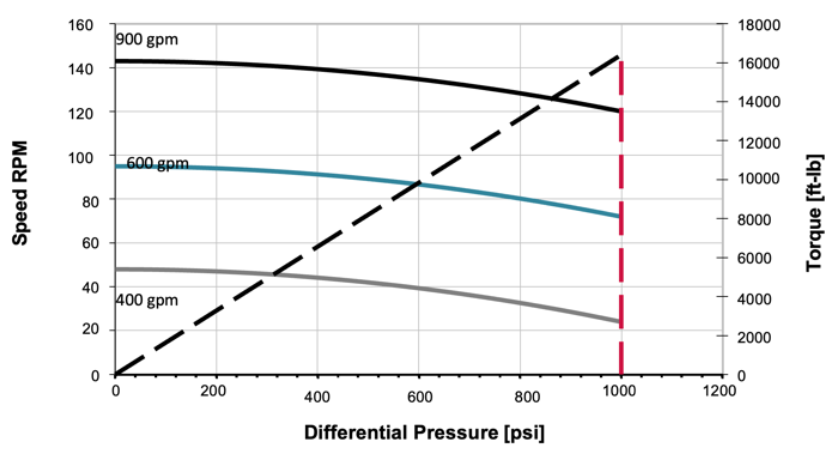

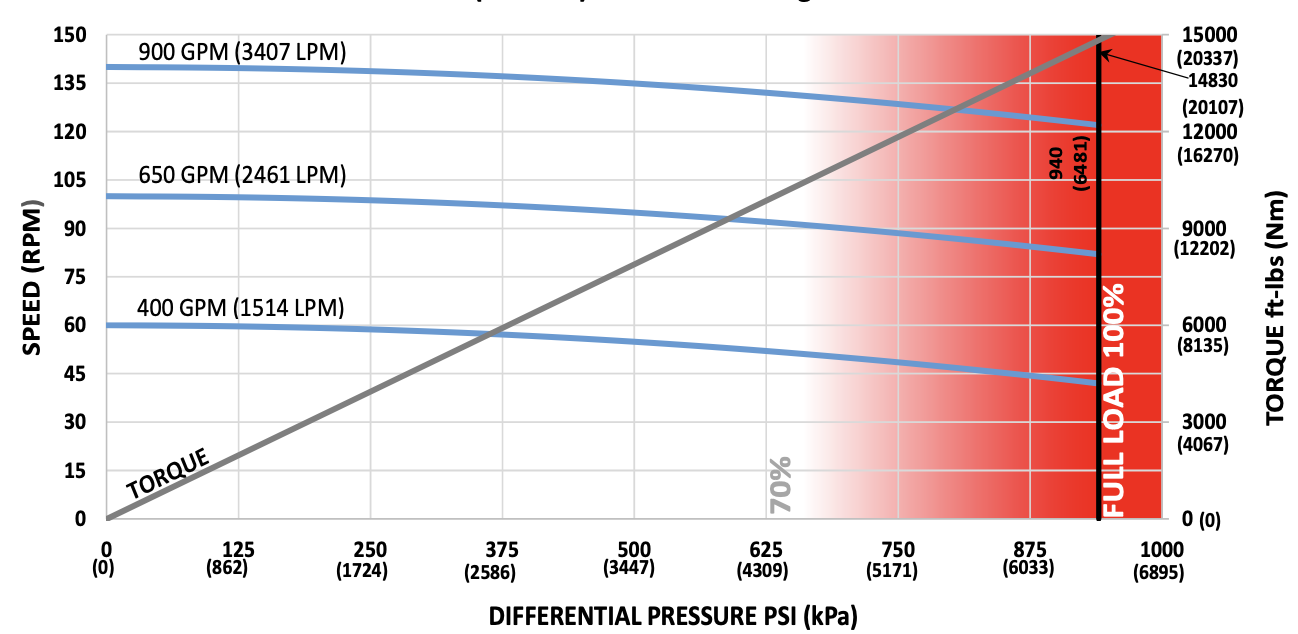

Torque Slope
15.77 ft-lb/psi
REV / Gal
0.160 rev/gal
0.042 rev/lpm
RPM
42 - 140 rpm
Flow range
400 - 900 gpm
1514 - 3407 lpm
Max Differential
940 psi
6481 kPa
Max Torque
14830 ft. lbs
20107 N-m
Stall Differential
1490 psi
10273 kPa
Stall Torque
23350 lb-ft
31658 N-m
Dynamic BL
162510 lbs
722 kN
Weight
3712 pounds
1684 kilos
Bit to Stab
19.10 in
Bit to Bend
74.40 in
Slick OD
8.00 in
Wear Pad OD
8.25 Inch in
Overall Length
343.65 in
Top Connection
6 5/8
Bottom Connection
6 5/8" Reg
Predicted Build Rates (Degrees per 100 ft/30 m)
| Bend | Slick | Single Stabilizer | ||||
|---|---|---|---|---|---|---|
| 9 ⅞ | 10 ⅝ | 12 ¼ | 9 ⅞ | 10 ⅝ | 12 ¼ | |
| 0.78 | 2.20 | 0.40 | - | 4.90 | 5.50 | 6.70 |
| 1.15 | 5.00 | 3.10 | - | 7.20 | 7.70 | 8.90 |
| 1.50 | 7.60 | 5.70 | 1.70 | 9.30 | 9.80 | 11.00 |
| 1.83 | 10.10 | 8.20 | 4.20 | 11.30 | 11.80 | 13.00 |
| 2.12 | 12.20 | 10.40 | 6.40 | 13.00 | 13.60 | 14.80 |
| 2.38 | 14.20 | 12.30 | 8.30 | 14.60 | 15.20 | 16.30 |
| 2.60 | 15.80 | 13.90 | 9.90 | 15.90 | 16.50 | 17.70 |
| 2.77 | 17.10 | 15.20 | 11.20 | 17.10 | 17.50 | 18.70 |
| 2.90 | 18.00 | 16.20 | 12.20 | 18.00 | 18.30 | 19.50 |
| 2.97 | 18.60 | 16.70 | 12.70 | 18.60 | 18.70 | 19.90 |
| 3.00 | 18.80 | 16.90 | 12.90 | 18.80 | 18.90 | 20.10 |
*The charts above display the maximum theoretical allowable rotation for optimal hole conditions. The RPM limits above are for optimal hole
conditions and normal drilling conditions and parameters. These should be reduced further when operating with high vibration, high rotary
torque, poor hole quality, high WOB, stick slip, hard stall events and other abnormal conditions.
